Custom Zirconia Abutments

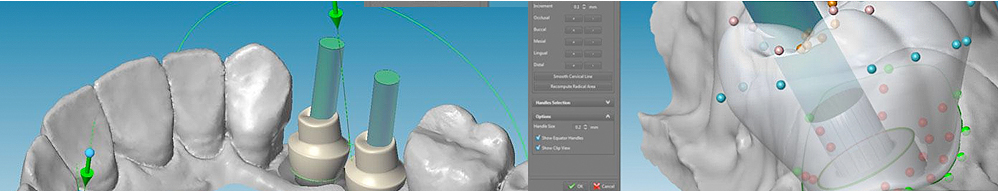

360SDM provides custom abutments in titanium, zirconia, or chrome cobalt, both cement and screw retained. We utilize the abutment design software by Dental Wings and our top down approach is to first design the full contour and then design our abutments within the space created. All of our abutments are designed to optimize a natural prepped tooth structure.

With every custom abutment we incorporate the following emergence profile design elements:

  • Moving the crowns emergence close to the natural tooth to achieve the best interproximal contact. This design will insure us to regain the interdental papilla.

  • Setting the ideal margins to help create crown emergence. With the margin heights, ideal cement retrieval is optimized.

  • Designing the ideal circumferential thickness to achieve the correct crown emergence and give the proper esthetics, form and function to the tooth.

  • Ideal gingival sculpting of the abutment emergence profile dictates the neck width and gingival zenith and height.

  • Correcting angulations of misaligned implants, and most importantly to change the angle of disclusion in the final restoration, for every 10 degrees change in the angle of disclusion, there is a 35 degrees change in force applied. So we tilt it back to get ideal disclusion, even though the angle is determined by the bite of the patient, we can reduce the stress on the implant by rotating it into a more ideal occlusion, and is especially effective on anterior teeth, so we are able to control the angle of emergence.

  • The goal of any custom abutment is that the restorations are as ideally placed as possible; the cement gap is properly placed for ideal removal, the papilla and gingival can be properly contoured, and the best form, fit, function, and esthetics can be achieved.

360SDM cannot fabricate a custom abutment with an angle greater than 30 degrees. Inter-occlusal distance must be at least 6mm. If you provide the soft tissue model we can only judge the margins based on your model and changes to tissue position post impression will need to be adjusted chairside by the clinician. We reserve the right to return cases that do not fit the criteria of allowing the tissue to adequately heal, proper impression taking, clear soft tissue position, angles greater than 30 degrees, at least 6mm of inter-occlusal distances, or other clinical factors that would prevent us from providing clinically excellent results.







Implant Brand
Platform Type
Titanium
Zirconia
Noble Branemark
NP, RP, WP
Noble Replace
NP, RP, WP, 6.0
Nobel Active
NP, RP
Straumann Tissue Level
NN, RN, WN
Straumann Bone Level
NC, RC
Astra Tech
3.0, 3.5/4.0, 4.5/5.0
Dentsply Xive
3.0, 3.4, 3.8, 4.5, 5.5
3i Certain
Certain 3.4, Certain 4.1, Certain 5.0
Keystone Restore
External Hex SD,
ExternalHex RD,
External Hex WD
Zimmer
Tapered Screw-Vent (3.5,4.5,5.7)
Intra-Lock
SQ (Str 3.3/T3.75), S(Str4.0/C 4.3),
W(Str 4.75/C 4.3, 5.0), Flat(3.5, 5.0)
BioHorizons
External (3.5, 4.0, 5.0, 6.0)
BioHorizons
Internal (3.5, 4.5, 5.7)
Osstem
GS Mini 3.5,
GS Standard (4.0, 4.5, 5.0)
Dentium
Mini (4.5) Standard (5.5/6.5)
Dio
N(3.9/4.8) RW(4.8/5.8) RW(6.8/7.8)

Our range is constantly being extended, please contact us at: 800.369.5485
